Chinese Ground System
Ground System
Product Details

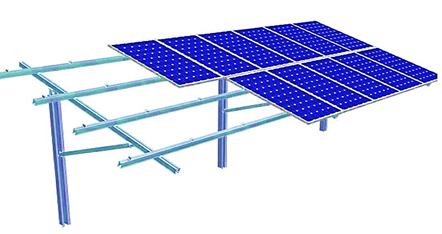

Single pole solar PV mounting system
Single column solar PV mounting racking system also name “L” style racking system, suit for the small needs with simple structure and easy installation as a normal choice.

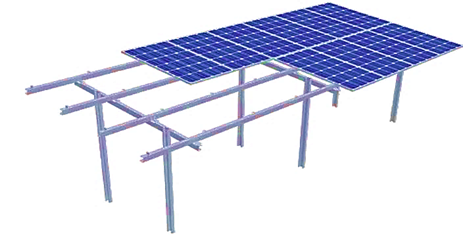

Double pole mounting
Double column solar racking system always named by “T” style racking system. It is better for the larger PV demands for its better stability and stronger carrying capacity of snow and wind loading.

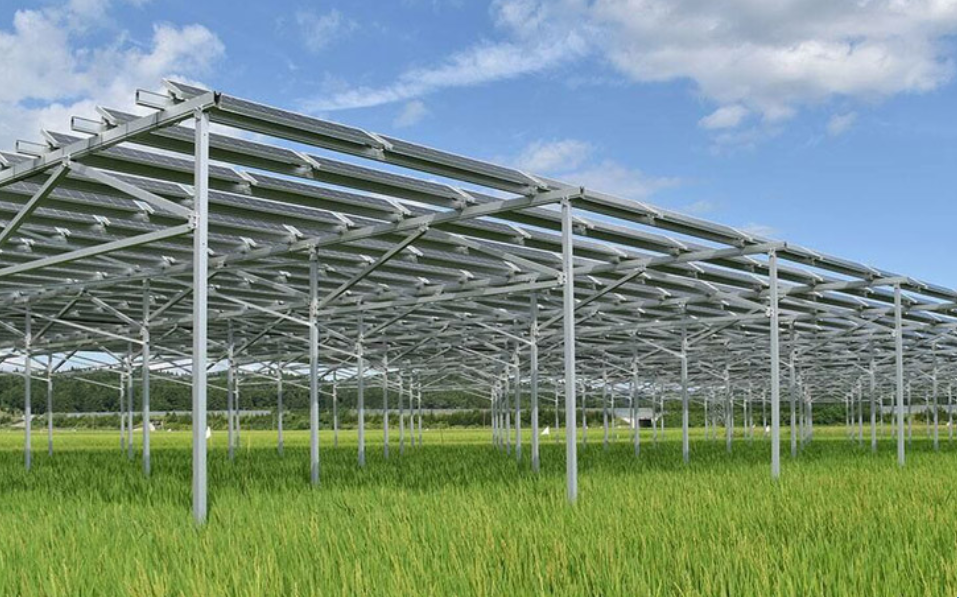

Frame mounting system
Frame mounting system for solar PV. It is equipped with many supporting racks and beams as well as accessories.
Technical Parameters |
||||||
| Installation site | Ground | |||||
| Suits | Large Commercial & Utility-scale PV Projects | |||||
| Tile Angle | 0-60° | |||||
| Wind Load | ≤ 60m/s | |||||
| Snow Load | ≤ 1.6KN/㎡ | |||||
| Application Module | Framed or Frameless, Any width panel | |||||
| Panels Layout | Portrait or Landscape | |||||
| Material | Steel Q235B(Hot-Dip Galvanized),AL6005-T5(Anodized) | |||||
| Fastener | SUS304&Zinc-Nickel Alloy Electroplated Steel | |||||
| Small Components | AL6005T5(Anodized) | |||||
| Color | Silver or Customized | |||||
| Warranty | 10 Years | |||||
GT team is always here welcoming your detailed enquiries with raw material grade, dimensions, treatments, thickness, weight and (or) drawings etc., for which we will take care.
Jiangyin Guangtong Aluminum Industry Co., Ltd. is located in Xinqiao Town, Jiangyin City, which is one of the top 100 counties in China.
-
