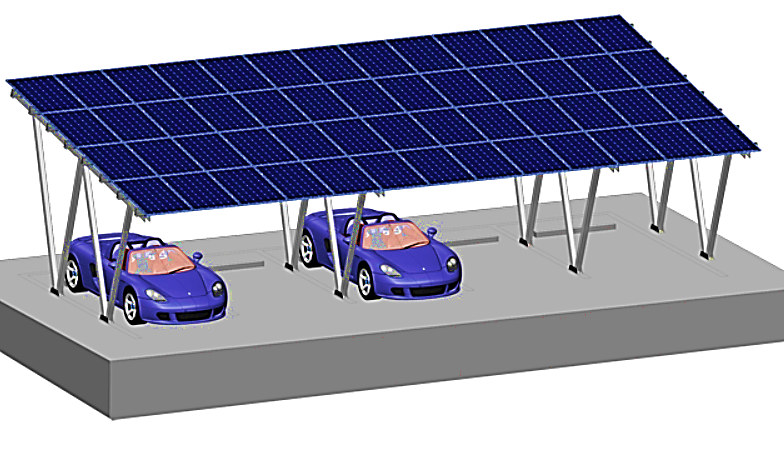

Aluminum solar carport mounting system
The aluminum solar carport mounting system saves the utility cost mostly and provides clean energy generation for parking. It is designed for single rows and double rows, tailored for most module types, orientations and inclinations. Wide foundation choices include precast concrete, bored pier and ground screw. It is one of the most economic choices which is to simplify the installation process. Make use of the space while generating electricity, economical multi-function and ideal to present photos. With components of beam connector, rail, rail splice, foot seat, pole, end clamp and inter clamp made by aluminum alloy or as customized.

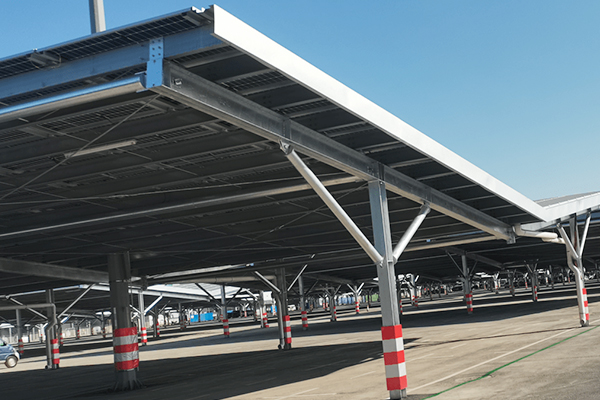

Steel carport solar PV system
GT’s Steel carport solar PV system matches heat isolation and waterproof cars parking. The steel carport system brings maximum convenience through providing cool, shady parking spaces in summer with protection during days. It can become charging stations for electric bicycles, scooters and cars with strong stability steel construction.
It is an ideal choice for large commercial and utility-scale solar PV projects with heat isolation economic for residential and commercial use features. Pre-assembled components save onsite install time.
Components are supporting beam, horizontal beam, pole, bracing, hook, connector, water guide gutter, end clamp and inter clamp or as customized.
Waterproof carport solar mounting system
GT’s waterproof carport solar mounting system is advanced under various market’s feedback to provide fully waterproof solution for parking lot shade.
The waterproof solar carport is an excellent solution for energy generation on a big surface. It brings maximum convenience through offering cool, shady parking spaces in summer and protection during rainy days. The components for waterproof solar mounting system include supporting beam, rail, rail splice, big foot seat, small foot seat, water guide rail, water guide rail splice, cover plate, water guide gutter, end clamp and inter clamp or customized.
Aluminum Carport PV MountingTechnical Parameters |
||||||
| Installation site | Ground / Open Area | |||||
| Suits | Concrete foundation | |||||
| Tile Angle | 5°-15° | |||||
| Wind Load | Within 45m/s | |||||
| Snow Load | Within 1.2KN/㎡ | |||||
| Application Module | Framed or Frameless, Any width panel | |||||
| Panels Layout | Portrait or Landscape | |||||
| Material | AL6005-T5(Anodized) | |||||
| Fastener | SUS304&Zinc-Nickel Alloy Electroplated Steel | |||||
| Small Components | AL6005T5(Anodized) | |||||
| Color | Silver or Customized | |||||
| Warranty | 10 Years | |||||
Waterproof Carport PV Mounting Technical Parameters |
||||||
| Installation site | Open Area | |||||
| Suits | Concrete foundation | |||||
| Tile Angle | 5°-15° | |||||
| Wind Load | Within 50m/s | |||||
| Snow Load | Within 1.6KN/㎡ | |||||
| Application Module | Framed or Frameless, Any width panel | |||||
| Panels Layout | Portrait or Landscape | |||||
| Material | Zn-Al-Mg Coating Steel & HDG Steel | |||||
| Fastener | Zn-Ni Alloy & SUS304 & HDG Steel | |||||
| Small Components | AL6005T5(Anodized) | |||||
| Color | Silver or Customized | |||||
| Warranty | 10 Years | |||||
